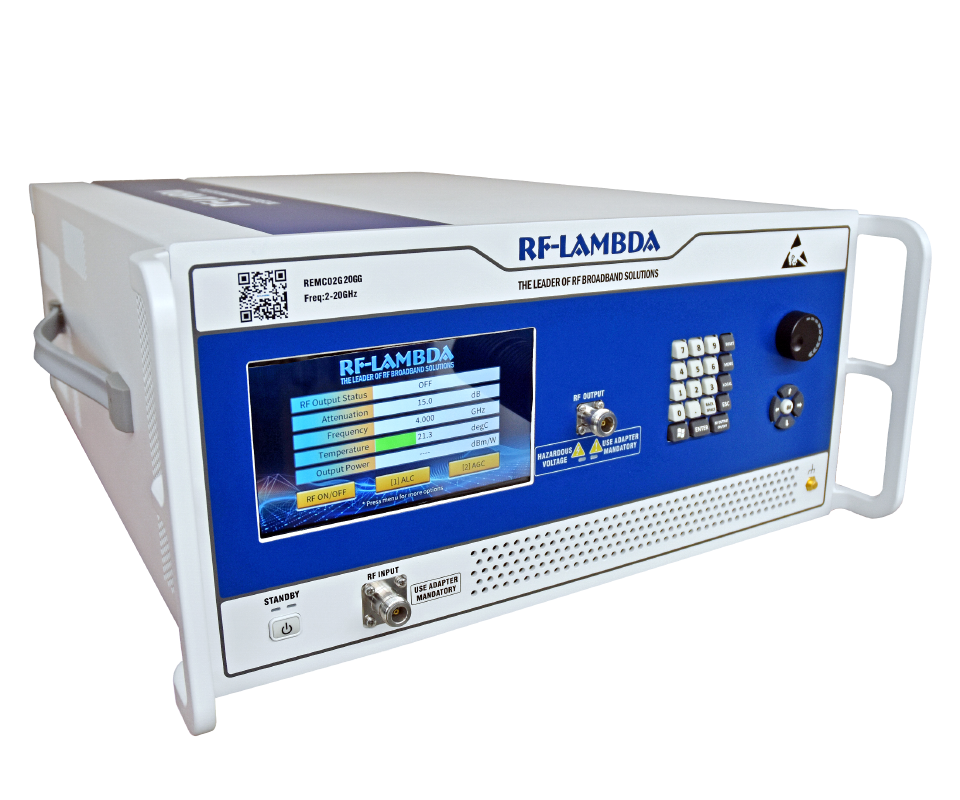

REMC0220GG
Benchtop EMC RF System Amplifier
FEATURES
- High peak to average handling capability
- High linearity and low noise figure
- Convenient AC Power Input
- Integrated Heat Sink and Fan
- All specifications can be modified upon request
- Power: 110V / 220V
- Datasheet Control Software
- Performance
- Product Highlights
PERFORMANCE
Frequency
2.000 ~ 20.000 GHz
Saturated Power
55.00 dBm typical
Gain
72 dB
Gain Variation
0.00 dB
Noise Figure
5.00 dB
Product Highlights
Cutting edge GaN technology powers this benchtop amplifier. With exceptional performance and an easy to use design, this unit has a broad range of applications - including Aerospace, Military, and Telecom Infrastructure projects.
TYPICAL APPLICATIONS
1. Test and Measurement
2. Wireless Communications
3. Military and Aerospace
