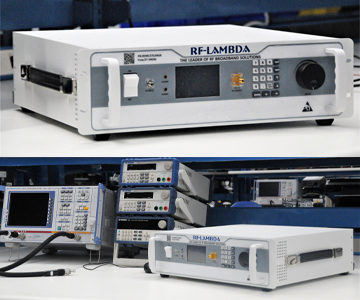

REMC08G11GD
150W Benchtop EMC RF System Amplifier
FEATURES
- High Dynamic Range Gain Control
- Calibrated Forward and Reverse Power Measurement
- Output Power Stabilization with Temperature Compensation
- Programmable Dynamic Output Power Profile
- VSWR Protection and Alarm
- RF Input Over Drive Protection
- Over Current Protection and Alarm
- Over Temperature Protection and Alarm
- Available both in AC and DC Powered Versions
- Automated Microprocessor Driven Self Calibration
- Datasheet Control Software
- Performance
- Product Highlights
PERFORMANCE
Frequency
8.000 ~ 11.000 GHz
Saturated Power
53.00 dBm typical
Gain
65 dB
Gain Variation
2.50 dB
Noise Figure
3.00 dB
Product Highlights
Cutting edge GaN technology powers this benchtop amplifier. With exceptional performance and an easy to use design, this unit has a broad range of applications - including Aerospace, Military, and Telecom Infrastructure projects.
TYPICAL APPLICATIONS
1. Test and Measurement
2. Wireless Communications
3. Military and Aerospace
